SZL series double drum automatic coal fired steam boiler

SZL series double drum chain grate stoker coal fired steam boiler

General featurers of SZL series double drum chain grate stoker coal fired steam boiler:  Low pressure, horizontal, industrial, coal fired, water tube, automatic chain grate stoker steam boiler. The rated evaporation is between 4ton/hr to 20 ton/hr.

Product feature

1.       Low coal consumption and High thermal efficiency;

2.      Reasonable water cycling, large water capacity and spacious steam volume;

3.       Equipped with light chain belt assembly grate, blowing machine and draught fan.

4.       High automation, mechanical adjustment of water supply, high and low water  level alarm;

5.       Low water and blowers interlocking protection;

6.       Mechanical operation of boiler coaling, slag discharging;

7.       Simple operation and quick installation.

8.       Matched with the high efficient desulfuration wet dust collector;

9.       Stable combustion, high therma efficiency.

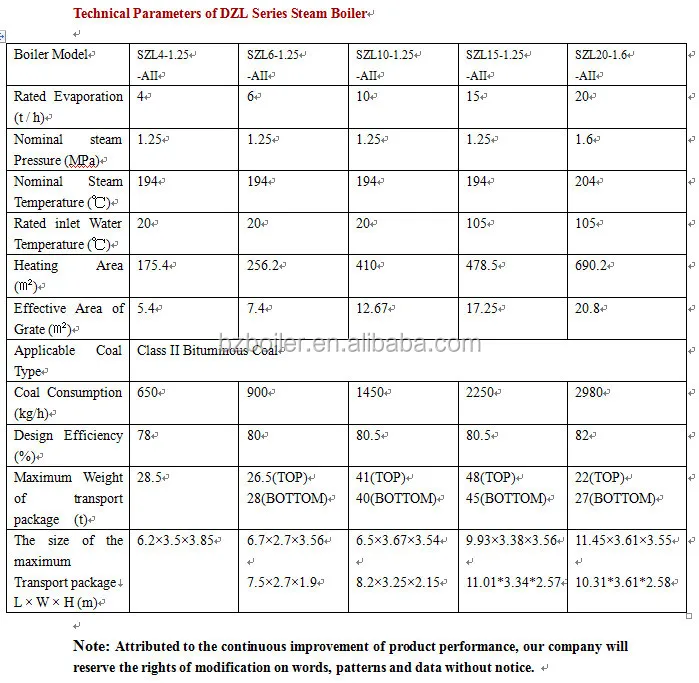

Technical parameters of SZL double drum chain grate stoker coal fired steam boiler:

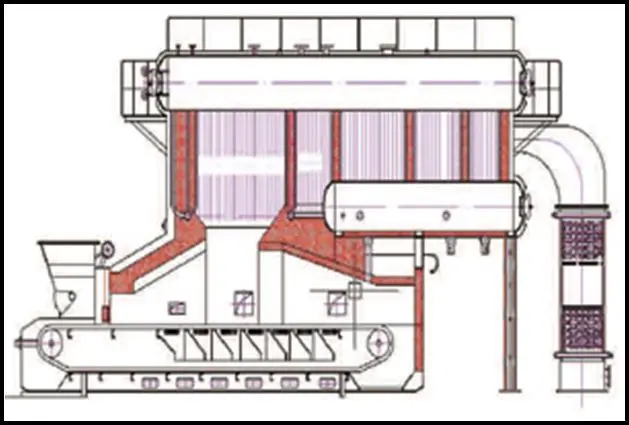

The product inner structure showing :

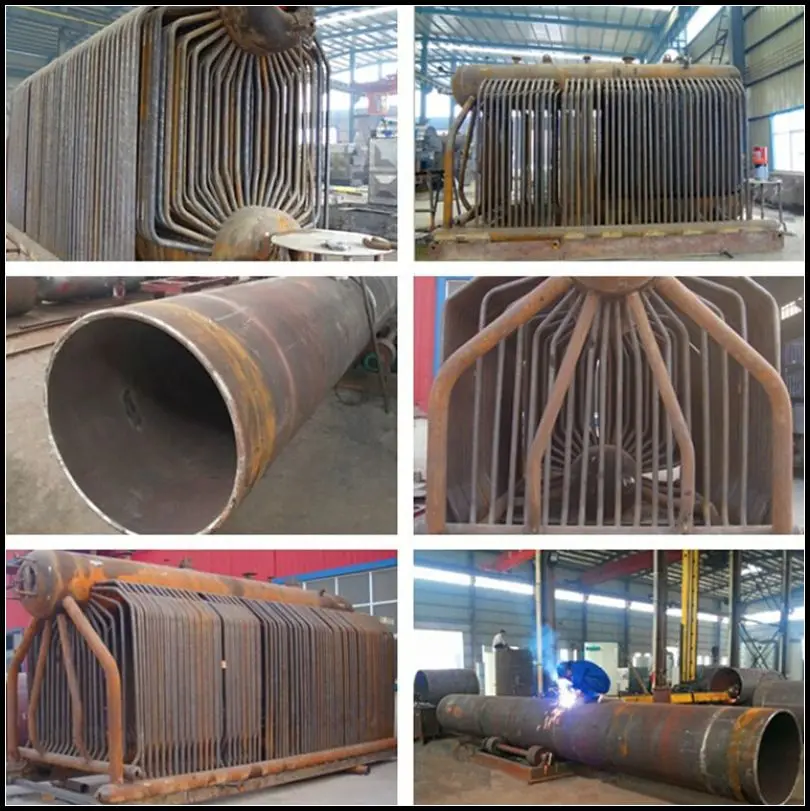

We are factory :

Hebei Gold Bangzi Boiler Co., Ltd, as a large-scale integrated professional manufacturing enterprise for A level boiler and D2 level pressure vessel, is a 30 years factory with ISO certification . The factory specializes in the design, development and production of boilers and pressure vessels. The boiler consists of hot water boiler, steam boiler and thermal oil boiler. The fuel could be coal, natural gas, diesel, oil and biomass.

Besides, our factory also could produce high quality and new patent machines--- briquette coal drying machine, membrane wall lignite and slime drying machine, which are widely used in chimical, pharmaceutical, food, drink...etc industry.

All of our products comply strictly with international quality standards and are quite appreciated in a variety of different markets throughout the world, such as North Korea, Mongolia, Russia, Kazakhstan, Kyrgyzstan and Indonesia ...etc.

Our customers :

Our service:

Pre-sale service:
1.According to the customer needs to recommend relative models machine.
2. According to the customer's special requirements to customize equipments.
3. Our engineers will supply the site and equipment drawing.

After-sale service:
1. According to the purchase contract, our company can send engineers to help  installation.
2. The quality guarantee is 1 year, not including the wearing parts.
3. Collecting customer feedback, solve the real problems faced by customers.
4. Our company supply spare parts all the year round.

  Besides, in the manufacturing process, clients are quite welcome to our factory to examine the actual quality and to carry out the follow-up inspection.
